Product No.：91051-806 Product Name：Industrial power supply Product Model：SYI-02000167001 Product App：Industrial power supply Manufacturers：Shenzhen Super-Eagle Technology Co., Ltd.   √ Collect the product information | √ A send product of message

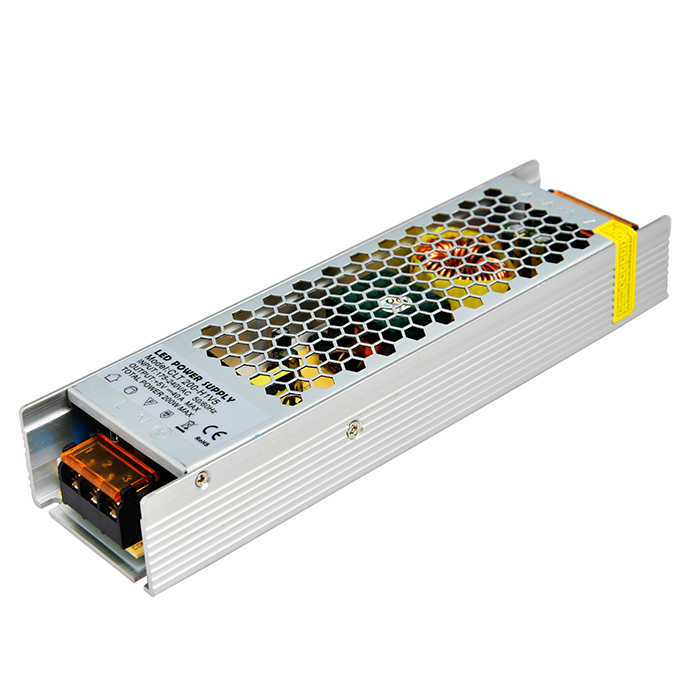

Click to view big picture ↑



Specification:

Model No.:SYI-02000167001

Input voltage: 110V-240V

Output power:200W

Output voltage:DC12V

Output current:16.7A



Features:

Low cost ,high reliance

Built-in EMI filter

Low output ripple and noise

Protection function: over load protection/over current protection/ short-circuit protection

Warranty: two years

AC input voltage range :176-264VAC

Input frequency:47-63Hz

Input inrush: Cold-start,40A/230VAC

Output voltage range:±10%

Voltage regulation(full): no more than 0.5%

Output over load protection:110%-150% intermittent mode,auto-recovery

Raise time,keep time :50mS,20mS Full load (typical)

Dielectric intensity: I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min

Working temperature:-40-85℃@100%, -40%@85%, 50℃@60%

Storage environment :-40℃~+85℃,20%~95%RH

Safety standard: conform to GB4943, CE-LVD,ROHS

EMC standard : conform to GB9254, EN55022 class A

Cooling method: natural convection air-cooling
